Column Type Size Nulls Auto Default Children Parents Comments
PROTOCOL_NUMBER number 22
ESEC_PORT_REFERENCE.PROTOCOL_NUMBER ESEC_PROTOCOL_ESEC_PORT_FK
ESEC_PORT_REFERENCE_RPT_V.PROTOCOL_NUMBER Implied Constraint
ESEC_PROTOCOL_REFERENCE_RPT_V.PROTOCOL_NUMBER Implied Constraint
PROTOCOL_KEYWORD varchar2 192  √  null
PROTOCOL_DESCRIPTION varchar2 1536  √  null
DATE_CREATED date 7
DATE_MODIFIED date 7
CREATED_BY number 22  √  null
MODIFIED_BY number 22  √  null

Table contained 255 rows at Tue May 04 17:09 EDT 2010

Indexes:
Column(s) Type Sort Constraint Name
PROTOCOL_NUMBER Primary key Asc ESEC_PROTOCOL_REFERENCE_PK

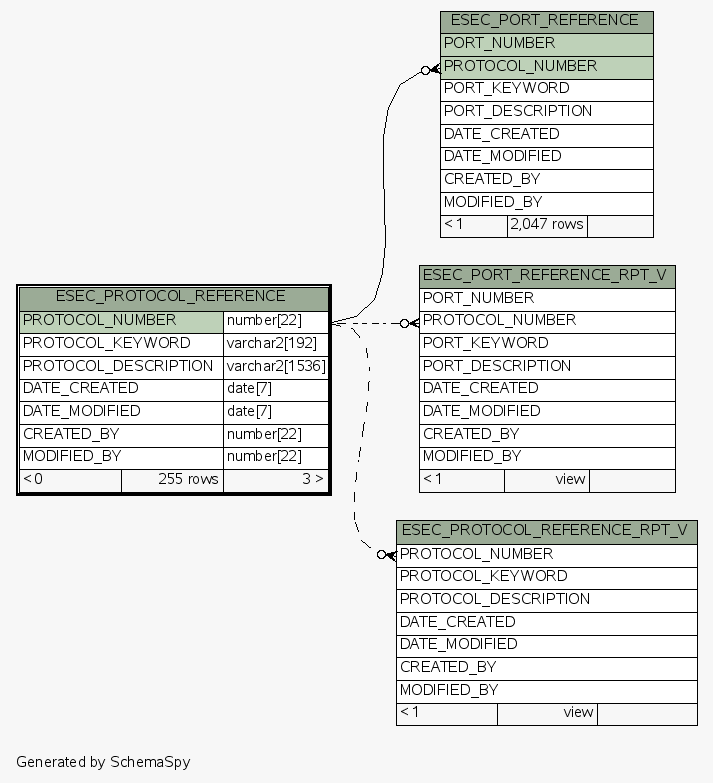

Close relationships:
