Table ESEC.ESECDBA.EVT_AGENT Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
AGENT_ID number 22
EVENTS.AGENT_ID Implied Constraint
EVENTS_RPT_V2.AGENT_ID Implied Constraint
EVENTS_RPT_V3.AGENT_ID Implied Constraint
EVENTS_SUB.AGENT_ID Implied Constraint
EVT_AGENT_RPT_V.AGENT_ID Implied Constraint
EVT_AGENT_RPT_V3.AGENT_ID Implied Constraint
EVT_DEST_SMRY_1.AGENT_ID Implied Constraint
EVT_DEST_SMRY_1_RPT_V.AGENT_ID Implied Constraint
EVT_SRC_SMRY_1.AGENT_ID Implied Constraint
EVT_SRC_SMRY_1_RPT_V.AGENT_ID Implied Constraint
CUST_ID number 22  √  null
CUST.CUST_ID Implied Constraint
AGENT varchar2 192  √  null
PORT varchar2 192  √  null
RN varchar2 765  √  null
PN varchar2 765  √  null
SN varchar2 765  √  null
ST varchar2 15  √  null
DEVICE_CTGRY varchar2 765  √  null
SRC_ID varchar2 108  √  null
DATE_CREATED date 7  √  null
DATE_MODIFIED date 7  √  null
CREATED_BY number 22  √  null
MODIFIED_BY number 22  √  null

Table contained 394 rows at Tue May 04 17:09 EDT 2010

Indexes:
Column(s) Type Sort Constraint Name Anomalies
AGENT_ID Primary key Asc EVT_AGENT_PK
AGENT + PORT + RN + PN + SN + ST + DEVICE_CTGRY + SRC_ID + CUST_ID Must be unique Asc/Asc/Asc/Asc/Asc/Asc/Asc/Asc/Asc EVT_AGENT_AK1 These unique columns are also nullable
DEVICE_CTGRY + AGENT_ID Performance Asc/Asc EVT_AGENT_IX1
ST + AGENT_ID Performance Asc/Asc EVT_AGENT_IX2

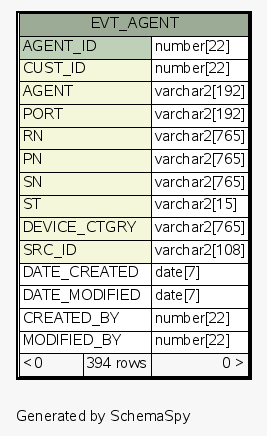

Close relationships:
