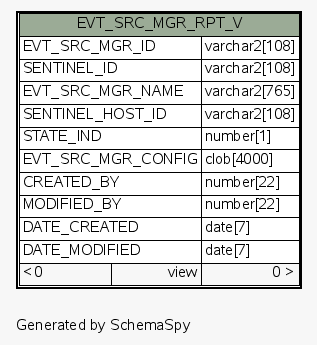

View ESEC.ESECDBA.EVT_SRC_MGR_RPT_V Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
EVT_SRC_MGR_ID varchar2 108
EVT_SRC_MGR.EVT_SRC_MGR_ID Implied Constraint
SENTINEL_ID varchar2 108
SENTINEL.SENTINEL_ID Implied Constraint
EVT_SRC_MGR_NAME varchar2 765
SENTINEL_HOST_ID varchar2 108  √  null
SENTINEL_HOST.SENTINEL_HOST_ID Implied Constraint
STATE_IND number 1
EVT_SRC_MGR_CONFIG clob 4000  √  null
CREATED_BY number 22  √  null
MODIFIED_BY number 22  √  null
DATE_CREATED date 7  √  null
DATE_MODIFIED date 7  √  null

Analyzed at Tue May 04 17:09 EDT 2010

View SQL:
select "EVT_SRC_MGR_ID","SENTINEL_ID","EVT_SRC_MGR_NAME","SENTINEL_HOST_ID","STATE_IND","EVT_SRC_MGR_CONFIG","CREATED_BY","MODIFIED_BY","DATE_CREATED","DATE_MODIFIED" from EVT_SRC_MGR

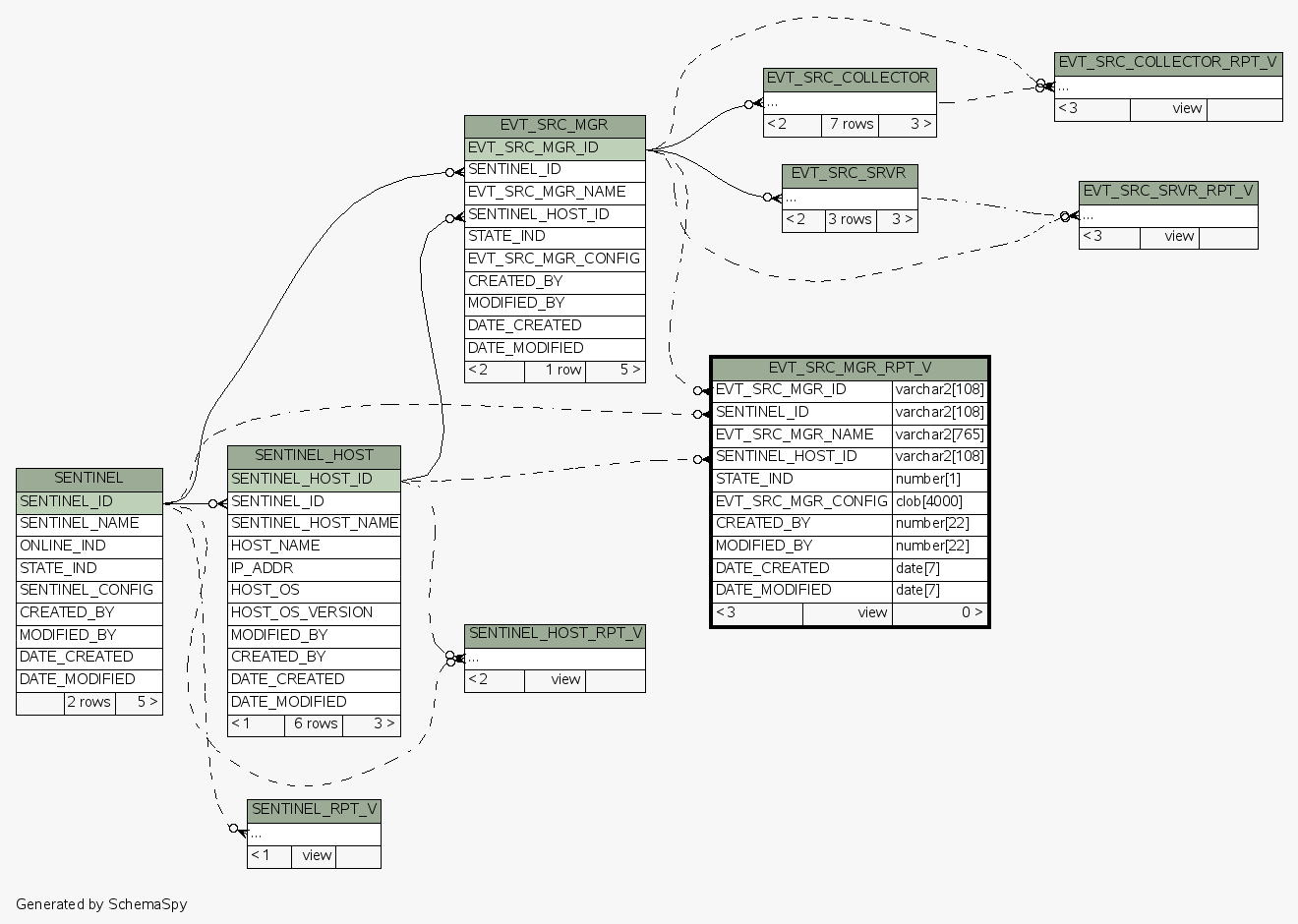

Close relationships:
