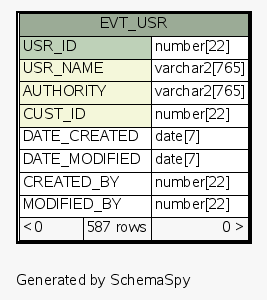

Table ESEC.ESECDBA.EVT_USR Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
USR_ID number 22
USERS.USR_ID Implied Constraint
USR_NAME varchar2 765  √  null
AUTHORITY varchar2 765  √  null
CUST_ID number 22  √  null
CUST.CUST_ID Implied Constraint
DATE_CREATED date 7  √  null
DATE_MODIFIED date 7  √  null
CREATED_BY number 22  √  null
MODIFIED_BY number 22  √  null

Table contained 587 rows at Tue May 04 17:09 EDT 2010

Indexes:
Column(s) Type Sort Constraint Name Anomalies
USR_ID Primary key Asc EVT_USR_PK
USR_NAME + AUTHORITY + CUST_ID Must be unique Asc/Asc/Asc EVT_USR_AK1 These unique columns are also nullable

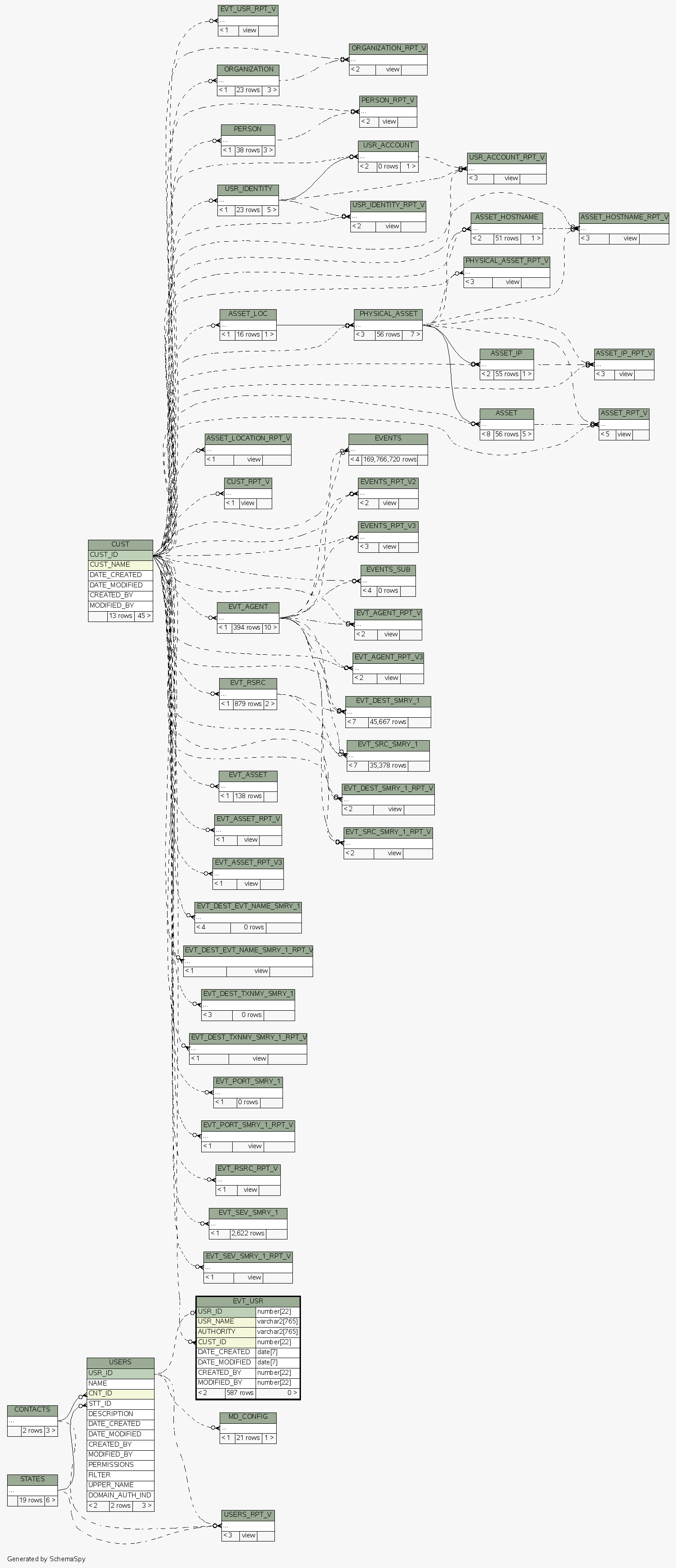

Close relationships:
