Column Type Size Nulls Auto Default Children Parents Comments
XDAS_TXNMY_NAME varchar2 765  √  null
XDAS_OUTCOME_NAME varchar2 765  √  null
XDAS_REGISTRY number 22  √  null
XDAS_PROVIDER number 22  √  null
XDAS_CLASS number 22  √  null
XDAS_IDENTIFIER number 22  √  null
XDAS_OUTCOME number 22  √  null
XDAS_OUTCOME_DTL number 22  √  null
XDAS_TXNMY_ID number 22
EVT_DEST_EVT_NAME_SMRY_1.XDAS_TXNMY_ID Implied Constraint
EVT_DEST_SMRY_1.XDAS_TXNMY_ID Implied Constraint
EVT_DEST_TXNMY_SMRY_1.XDAS_TXNMY_ID Implied Constraint
EVT_SRC_SMRY_1.XDAS_TXNMY_ID Implied Constraint
DATE_CREATED date 7  √  null
DATE_MODIFIED date 7  √  null
CREATED_BY number 22  √  null
MODIFIED_BY number 22  √  null

Table contained 73 rows at Tue May 04 17:09 EDT 2010

Indexes:
Column(s) Type Sort Constraint Name
XDAS_TXNMY_ID Primary key Asc EVT_XDAS_TXNMY_PK

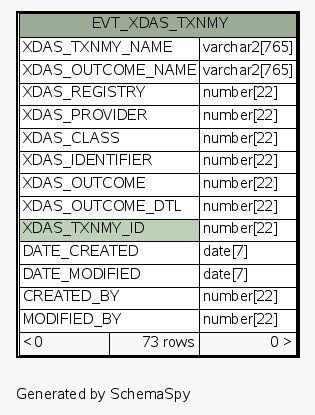

Close relationships:
