Table ESEC.ESECDBA.STATES Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
STT_ID number 22
INCIDENTS.STT_ID INT_STE_FK
INCIDENTS_RPT_V.STT_ID Implied Constraint
STATES_RPT_V.STT_ID Implied Constraint
UNASSIGNED_INCIDENTS_RPT_V.STT_ID Implied Constraint
USERS.STT_ID USR_STT_FK
USERS_RPT_V.STT_ID Implied Constraint
CONTEXT varchar2 192  √  null
NAME varchar2 192  √  null
TERMINAL_FLAG varchar2 3  √  null
DATE_CREATED date 7
DATE_MODIFIED date 7
MODIFIED_BY number 22  √  null
CREATED_BY number 22  √  null

Table contained 19 rows at Tue May 04 17:09 EDT 2010

Indexes:
Column(s) Type Sort Constraint Name
STT_ID Primary key Asc STT_PK
CONTEXT + NAME Performance Asc/Asc STT_CONTEXT_NAME_IDX

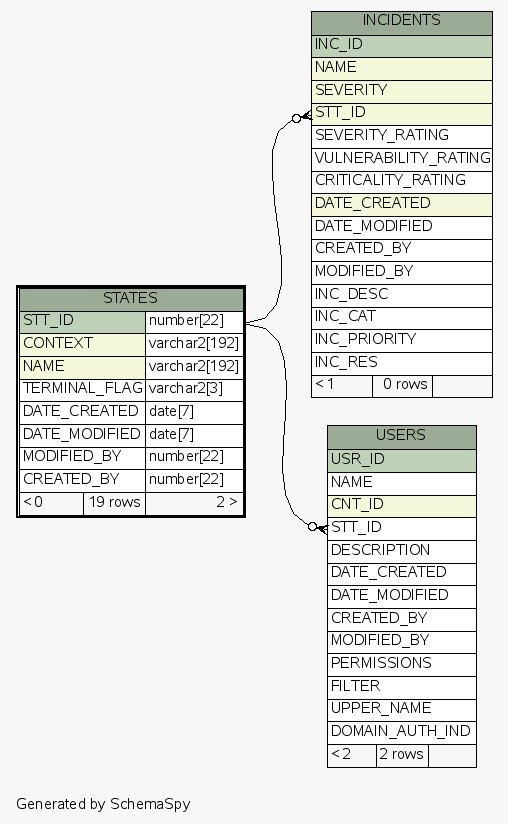

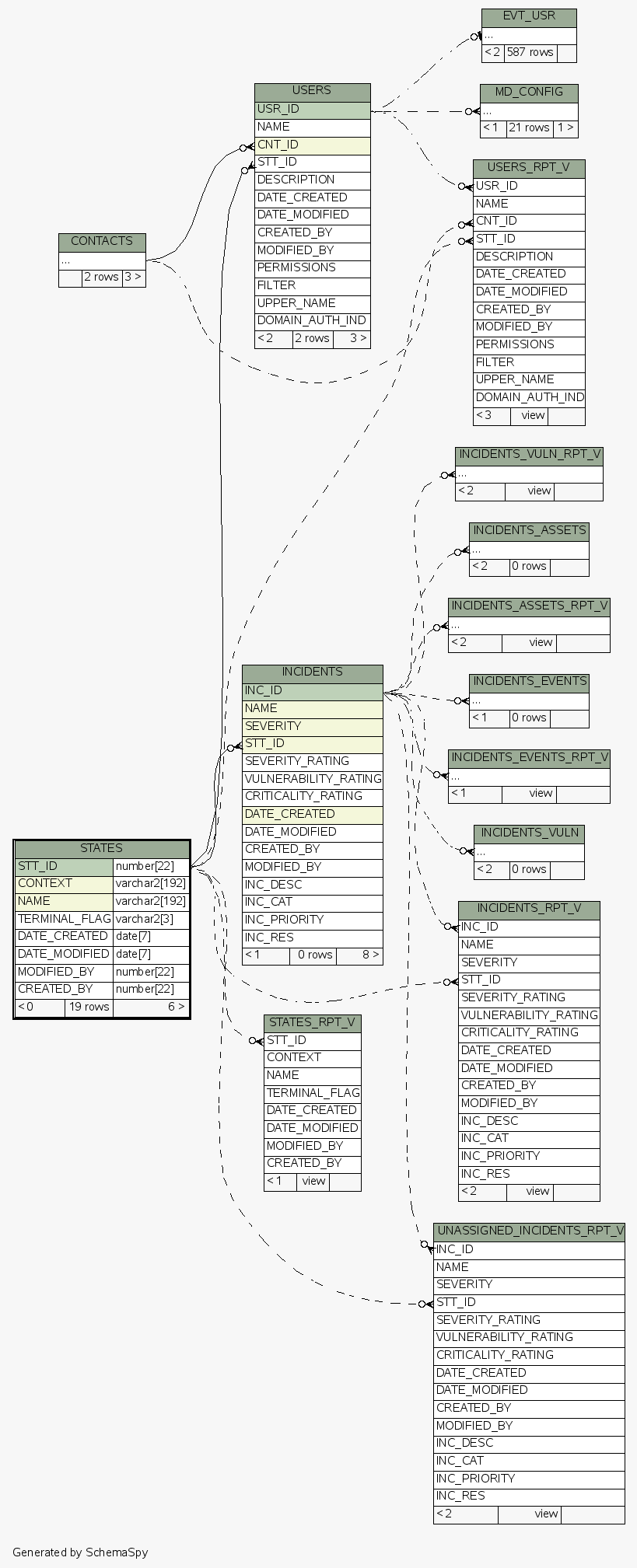

Close relationships  within of separation:
