Table ESEC.ESECDBA.VULN_SCAN Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
SCAN_ID varchar2 108
VULN_RSRC_SCAN.SCAN_ID VULN_SCAN_VULN_RSRC_SCAN_FK
VULN_RSRC_SCAN_RPT_V.SCAN_ID Implied Constraint
VULN_SCAN_RPT_V.SCAN_ID Implied Constraint
VULN_SCAN_VULN.SCAN_ID VULN_SCAN_VULN_SCAN_VULN_FK
VULN_SCAN_VULN_RPT_V.SCAN_ID Implied Constraint
SCANNER_ID varchar2 108
VULN_SCANNER.SCANNER_ID VULN_SCANNER_VULN_SCAN_FK
SCAN_TYPE varchar2 30  √  null
SCAN_START_DATE date 7  √  null
SCAN_END_DATE date 7  √  null
CONSOLIDATION_SERVER varchar2 192  √  null
LOAD_STATUS varchar2 192  √  null
DATE_CREATED date 7
DATE_MODIFIED date 7
CREATED_BY number 22  √  null
MODIFIED_BY number 22  √  null

Table contained 9 rows at Tue May 04 17:09 EDT 2010

Indexes:
Column(s) Type Sort Constraint Name
SCAN_ID Primary key Asc VULN_SCAN_PK
SCANNER_ID Performance Asc VULN_SCAN_SCANNER_ID_IDX

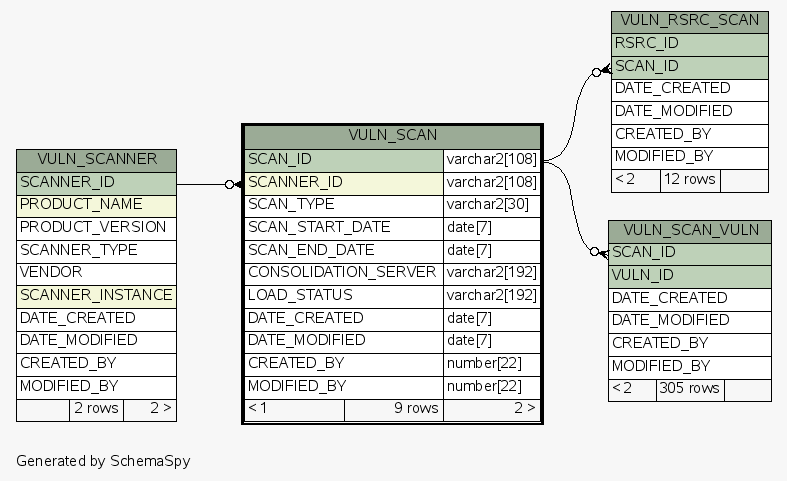

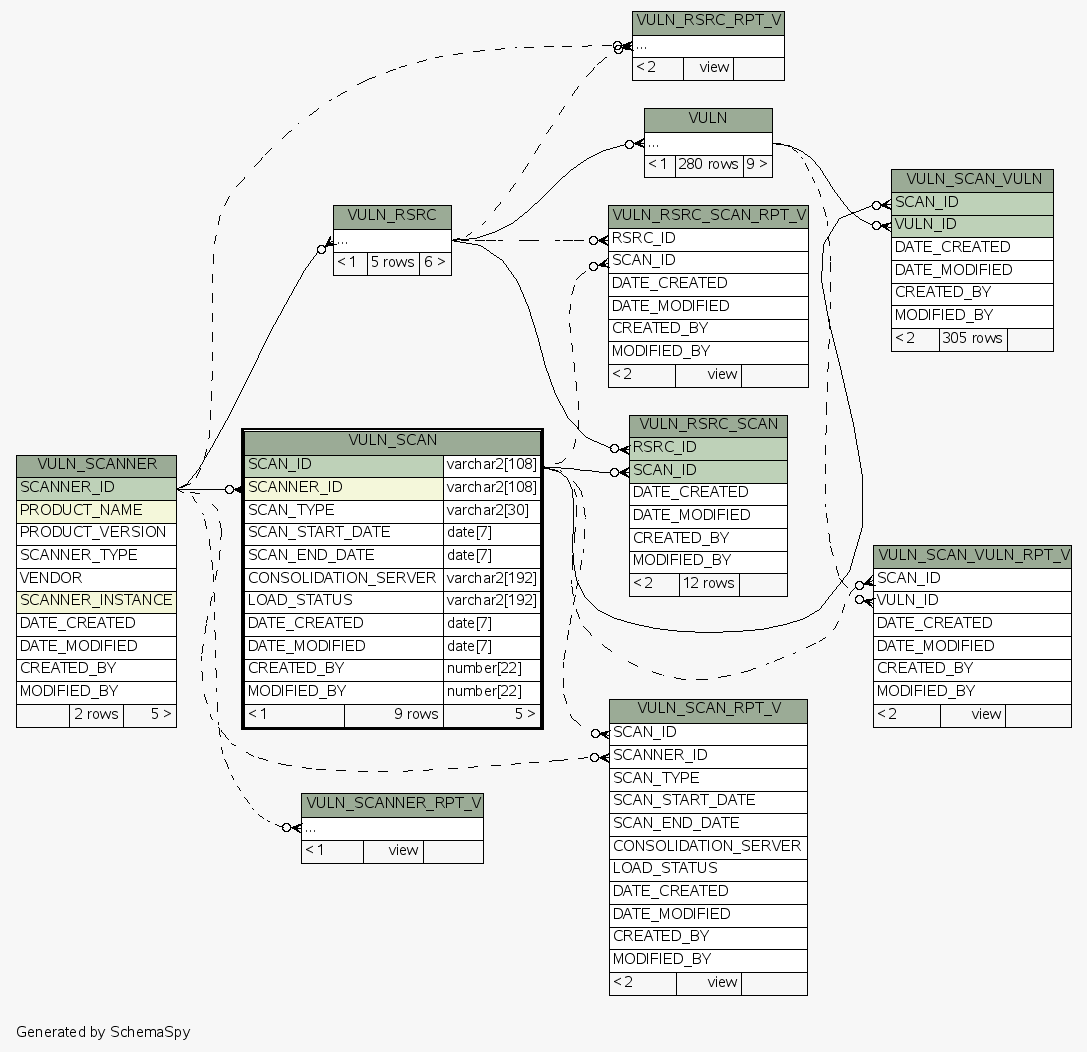

Close relationships  within of separation:
