37.8 Viewing an Application Chain

You can view the chains in which the application is a member (either as the primary application or as a dependent application).

  1. In ConsoleOne, right-click the Application object, then click Properties to display the Application object's property page.

  2. Click the Run Options tab > Application Dependencies to display the Application Dependencies page.

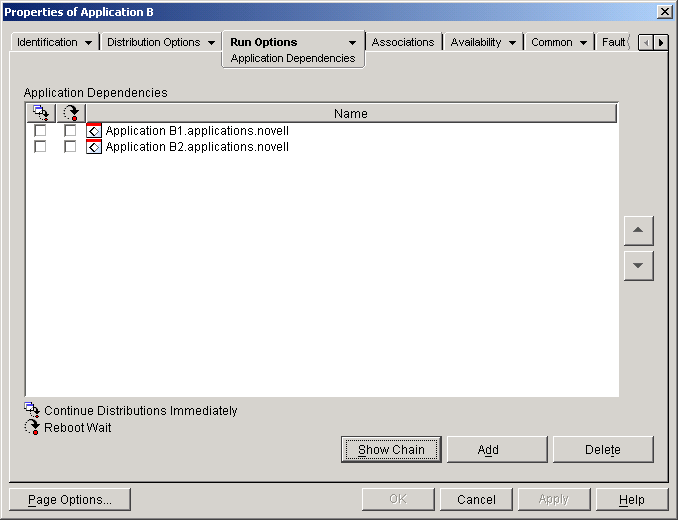

    Application object Application Dependencies page

  3. Click Show chain to display the Application Dependencies Chain dialog box.

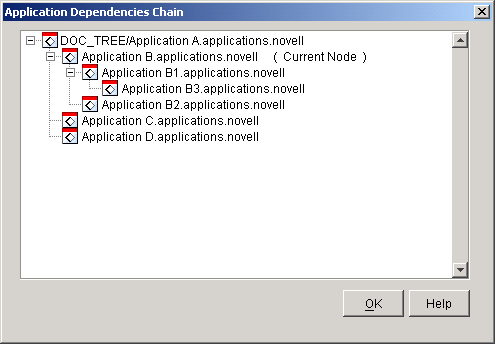

    Application Dependencies Chain dialog box

    In the above example, Application B (the current application, or current node) is a dependent application for Application A. In addition, it has two dependent applications, Application B1 and Application B2.

  4. When you are finished viewing the chain, click OK.
