Table ESEC.ESECDBA.ASSET Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ASSET_ID varchar2 108
ASSET_RPT_V.ASSET_ID Implied Constraint
ASSET_X_ENTITY_X_ROLE.ASSET_ID ASSET_X_ENTITY_X_ROLE_FK1
ASSET_X_ENTITY_X_ROLE_RPT_V.ASSET_ID Implied Constraint
INCIDENTS_ASSETS.ASSET_ID Implied Constraint
INCIDENTS_ASSETS_RPT_V.ASSET_ID Implied Constraint
CUST_ID number 22
CUST.CUST_ID Implied Constraint
ASSET_NAME varchar2 765  √  null
PHYSICAL_ASSET_ID varchar2 108
PHYSICAL_ASSET.PHYSICAL_ASSET_ID ASSET_FK1
PRDT_ID number 22
PRDT.PRDT_ID ASSET_FK6
ASSET_CTGRY_ID number 22
ASSET_CTGRY.ASSET_CTGRY_ID ASSET_FK2
ENV_IDENTITY_ID number 22
ENV_IDENTITY_LKUP.ENV_IDENTITY_ID ASSET_FK7
PHYSICAL_ASSET_IND number 1  √  null
ASSET_VAL_ID number 22
ASSET_VAL_LKUP.ASSET_VAL_ID ASSET_FK3
CRIT_ID number 22
CRIT_LKUP.CRIT_ID ASSET_FK4
SENSITIVITY_ID number 22
SENSITIVITY_LKUP.SENSITIVITY_ID ASSET_FK5
DATE_CREATED date 7  √  null
DATE_MODIFIED date 7  √  null
CREATED_BY number 22  √  null
MODIFIED_BY number 22  √  null

Table contained 56 rows at Tue May 04 17:09 EDT 2010

Indexes:
Column(s) Type Sort Constraint Name
ASSET_ID Primary key Asc ASSET_PK
ASSET_NAME + PHYSICAL_ASSET_ID + CUST_ID Must be unique Asc/Asc/Asc ASSET_AK1

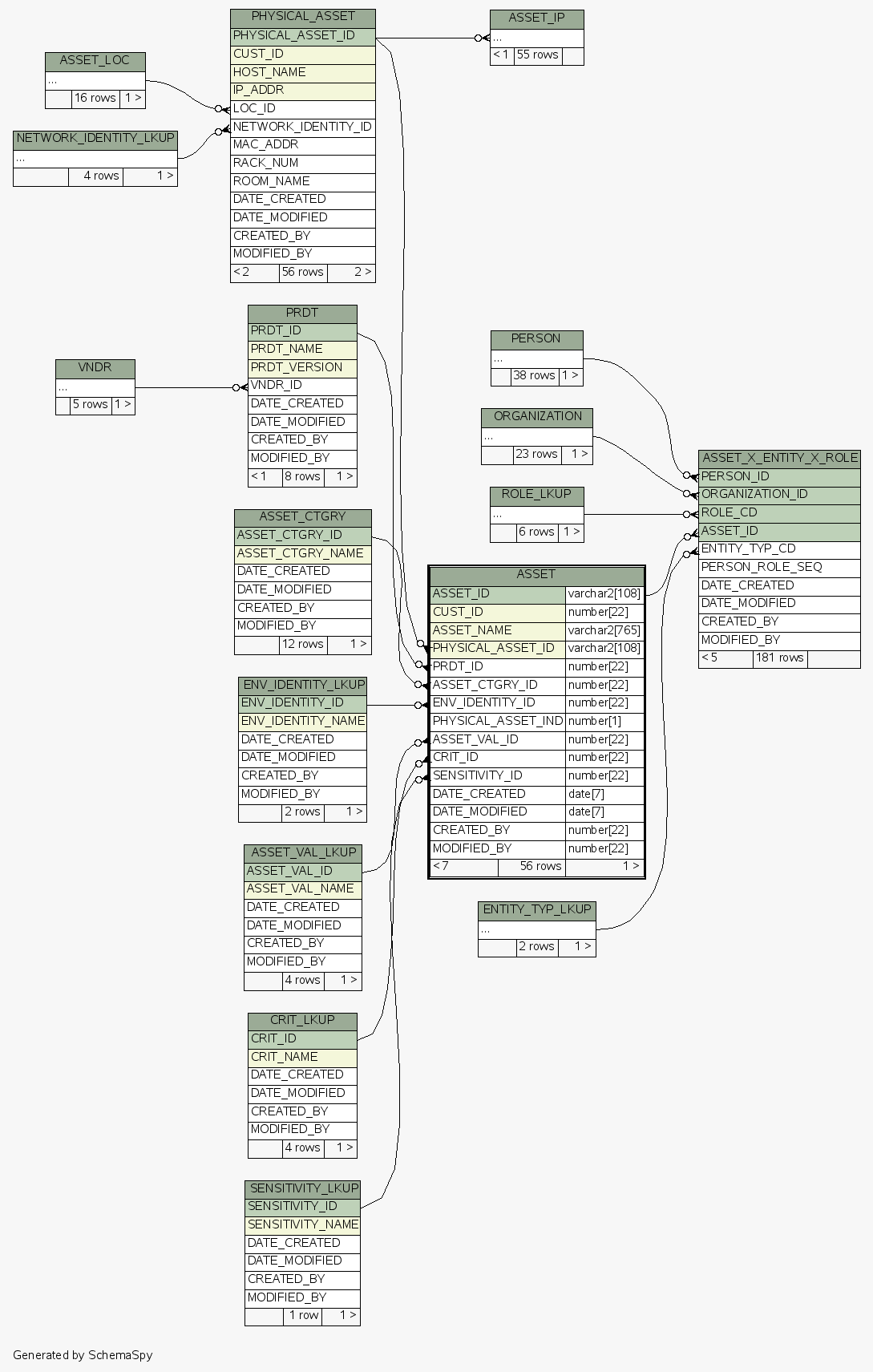

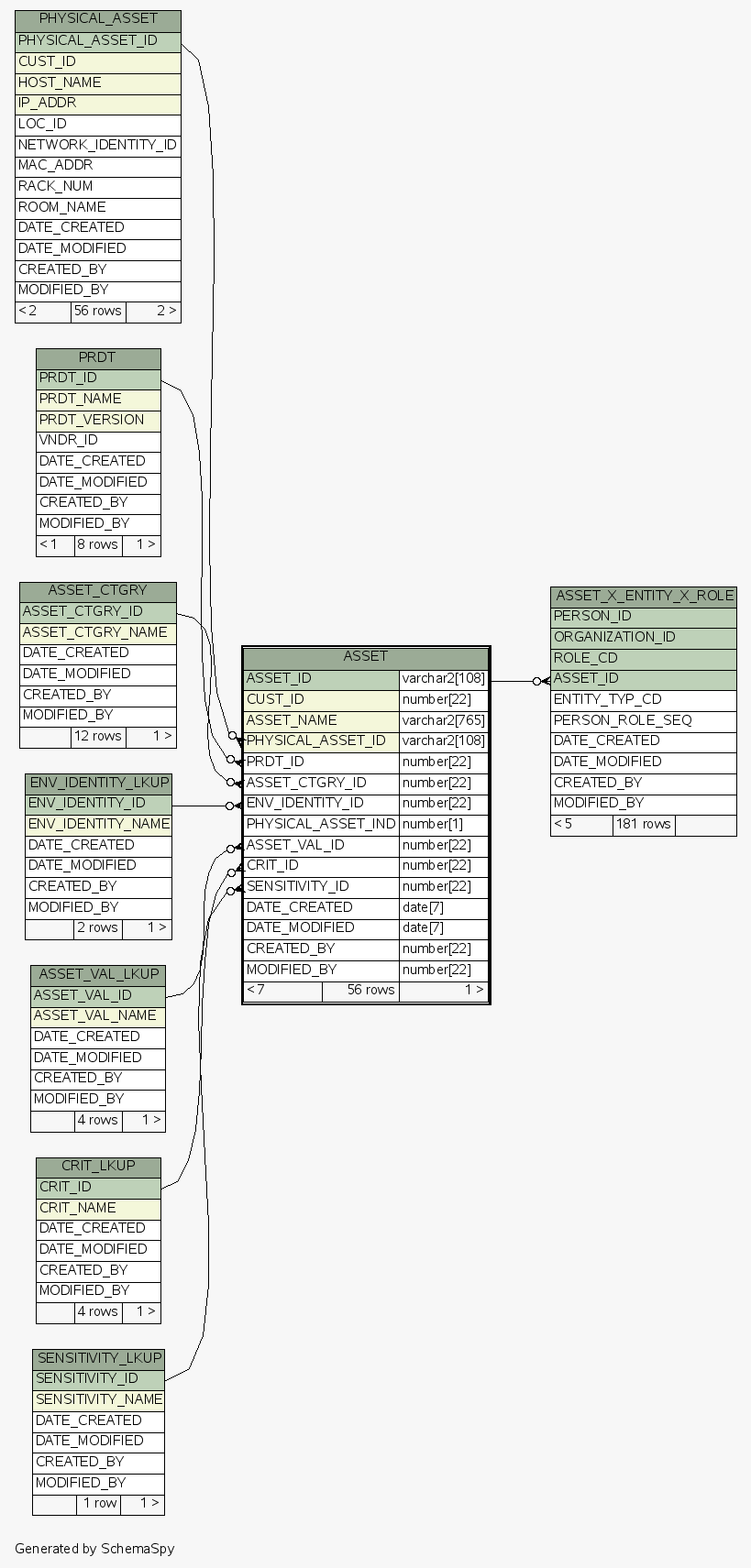

Close relationships  within of separation:
