Table ESEC.ESECDBA.ASSET_X_ENTITY_X_ROLE Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
PERSON_ID varchar2 108
PERSON.PERSON_ID ASSET_X_ENTITY_X_ROLE_FK2
ORGANIZATION_ID varchar2 108
ORGANIZATION.ORGANIZATION_ID ASSET_X_ENTITY_X_ROLE_FK3
ROLE_CD varchar2 15
ROLE_LKUP.ROLE_CD ASSET_X_ENTITY_X_ROLE_FK4
ASSET_ID varchar2 108
ASSET.ASSET_ID ASSET_X_ENTITY_X_ROLE_FK1
ENTITY_TYP_CD varchar2 15
ENTITY_TYP_LKUP.ENTITY_TYP_CD ASSET_X_ENTITY_X_ROLE_FK5
PERSON_ROLE_SEQ number 22  √  null
DATE_CREATED date 7  √  null
DATE_MODIFIED date 7  √  null
CREATED_BY number 22  √  null
MODIFIED_BY number 22  √  null

Table contained 181 rows at Tue May 04 17:09 EDT 2010

Indexes:
Column(s) Type Sort Constraint Name
PERSON_ID + ORGANIZATION_ID + ROLE_CD + ASSET_ID Primary key Asc/Asc/Asc/Asc ASSET_X_ENTITY_X_ROLE_PK

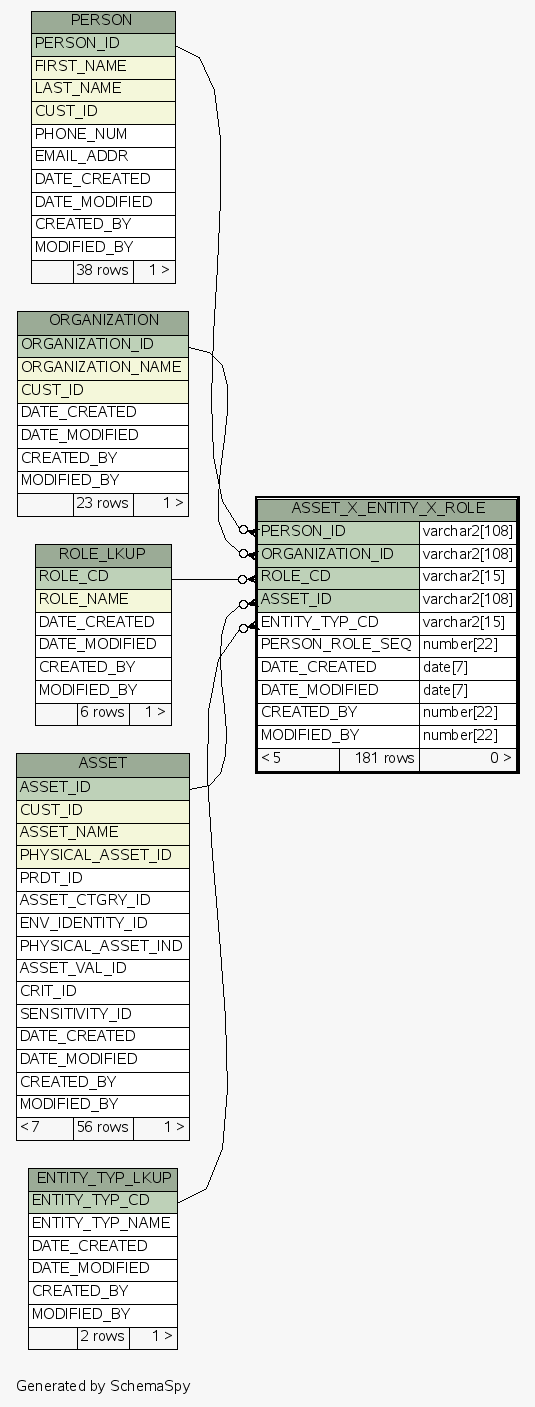

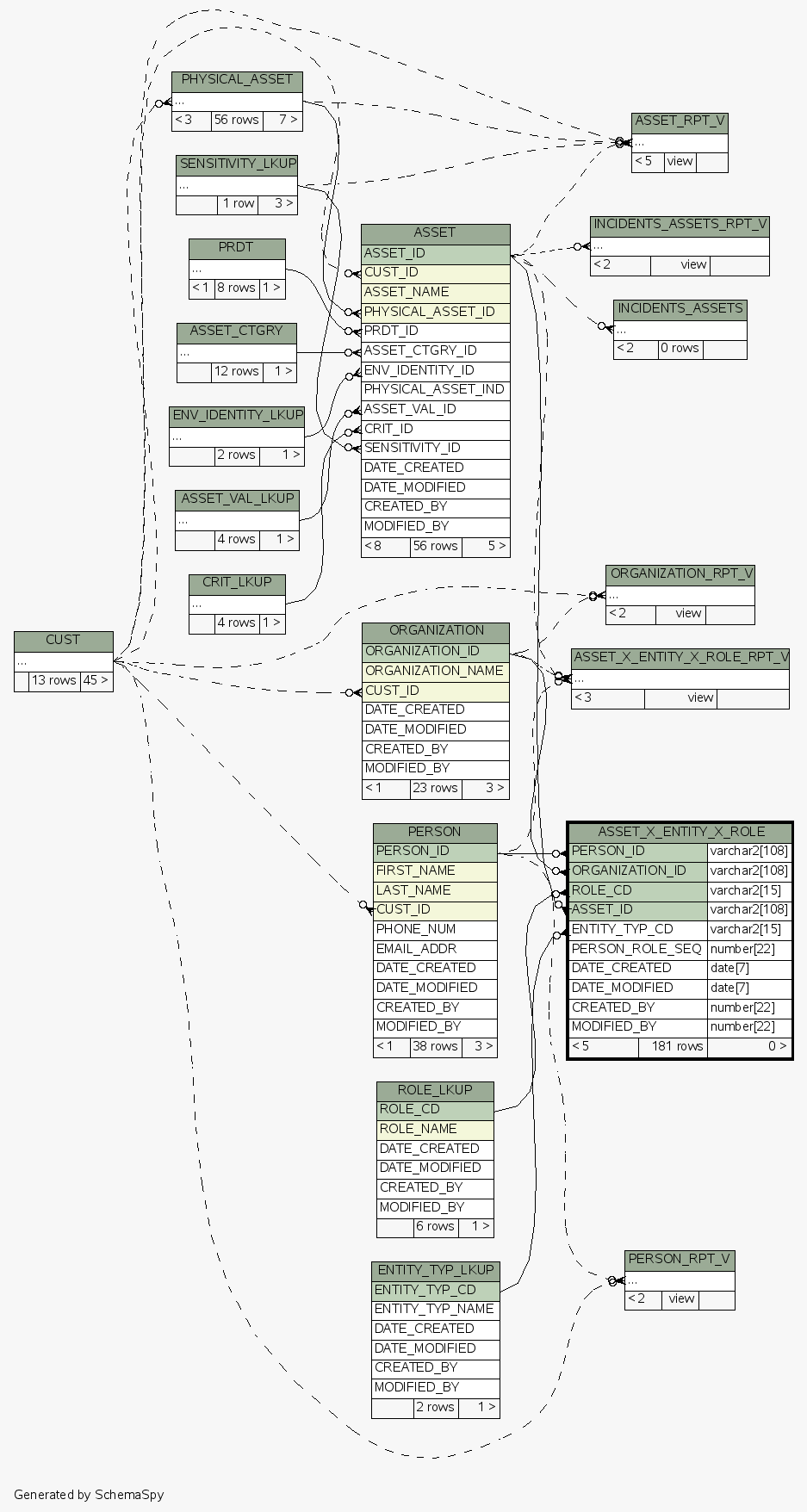

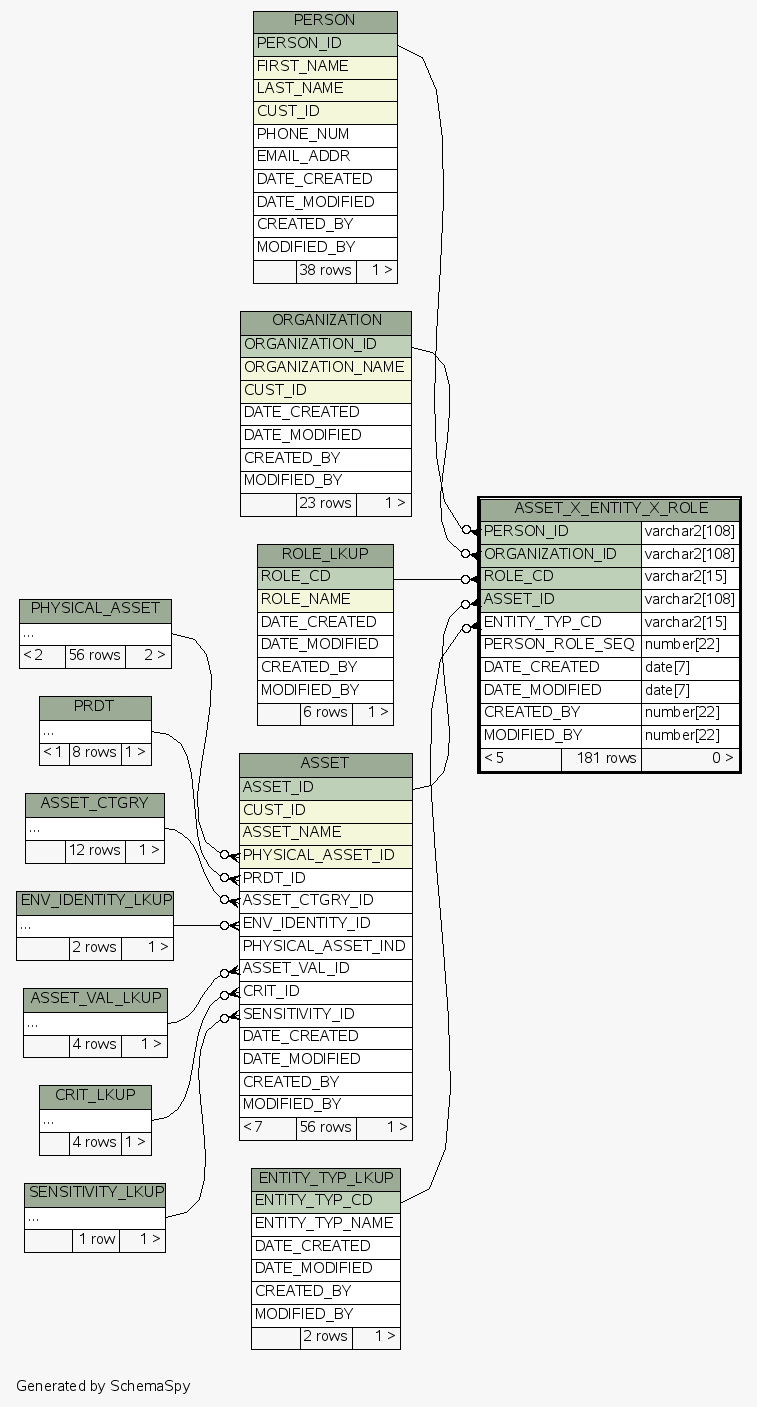

Close relationships  within of separation:
