Table ESEC.ESECDBA.CORR_ENGINE_CONFIG Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
CORR_ENGINE_CONFIG_ID varchar2 108
CORR_DEPLOY_CONFIG.CORR_ENGINE_CONFIG_ID CORR_DEPLOY_CONFIG_FK
CORR_RULE_CFG.CORR_ENGINE_CONFIG_ID CORR_ENGINE_CONFIG_RULE_FK
CORR_ENGINE_CONFIG_NAME varchar2 765  √  null
ENGINE_STATE number 1
CORR_ENGINE_CONFIG_HOSTNAME varchar2 765
CORR_ENGINE_CONFIG_HOSTIP varchar2 765
DATE_CREATED date 7
DATE_MODIFIED date 7
MODIFIED_BY number 22  √  null
CREATED_BY number 22  √  null

Table contained 3 rows at Tue May 04 17:09 EDT 2010

Indexes:
Column(s) Type Sort Constraint Name
CORR_ENGINE_CONFIG_ID Primary key Asc CORR_ENGINE_CONFIG_PK

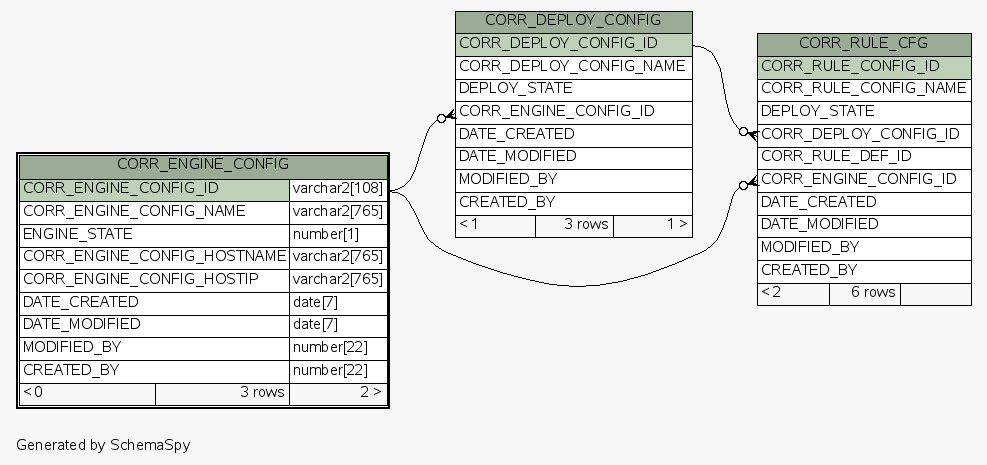

Close relationships:
