Column Type Size Nulls Auto Default Children Parents Comments
CORR_RULE_CONFIG_ID varchar2 108
CORR_RULE_CONFIG_NAME varchar2 765  √  null
DEPLOY_STATE number 1
CORR_DEPLOY_CONFIG_ID varchar2 108
CORR_DEPLOY_CONFIG.CORR_DEPLOY_CONFIG_ID CORR_RULE_CFG_FK
CORR_RULE_DEF_ID varchar2 108
CORR_ENGINE_CONFIG_ID varchar2 108
CORR_ENGINE_CONFIG.CORR_ENGINE_CONFIG_ID CORR_ENGINE_CONFIG_RULE_FK
DATE_CREATED date 7
DATE_MODIFIED date 7
MODIFIED_BY number 22  √  null
CREATED_BY number 22  √  null

Table contained 6 rows at Tue May 04 17:09 EDT 2010

Indexes:
Column(s) Type Sort Constraint Name
CORR_RULE_CONFIG_ID Primary key Asc CORR_RULE_CFG_PK

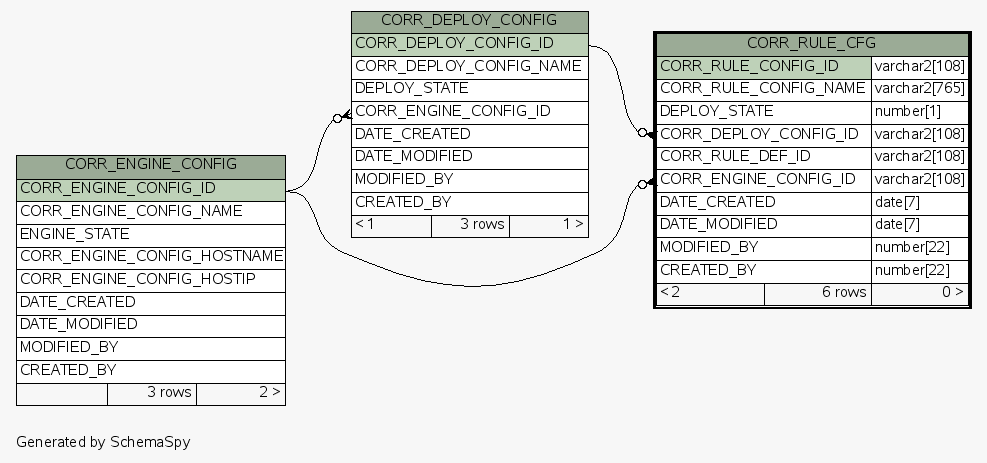

Close relationships:
