Table ESEC.ESECDBA.EVT_SRC_SRVR Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
EVT_SRC_SRVR_ID varchar2 108
EVT_SRC_GRP.EVT_SRC_SRVR_ID EVT_SRC_GRP_EVT_SRC_SRVR_FK
EVT_SRC_GRP_RPT_V.EVT_SRC_SRVR_ID Implied Constraint
EVT_SRC_SRVR_RPT_V.EVT_SRC_SRVR_ID Implied Constraint
EVT_SRC_SRVR_NAME varchar2 765
EVT_SRC_MGR_ID varchar2 108
EVT_SRC_MGR.EVT_SRC_MGR_ID EVT_SRC_SRVR_MGR_ID_FK
SENTINEL_PLUGIN_ID varchar2 108
SENTINEL_PLUGIN.SENTINEL_PLUGIN_ID EVT_SRC_SRVR_PLUGIN_FK
STATE_IND number 1
EVT_SRC_SRVR_CONFIG clob 4000  √  null
CREATED_BY number 22  √  null
MODIFIED_BY number 22  √  null
DATE_CREATED date 7  √  null
DATE_MODIFIED date 7  √  null

Table contained 3 rows at Tue May 04 17:09 EDT 2010

Indexes:
Column(s) Type Sort Constraint Name
EVT_SRC_SRVR_ID Primary key Asc EVT_SRC_SRVR_PK

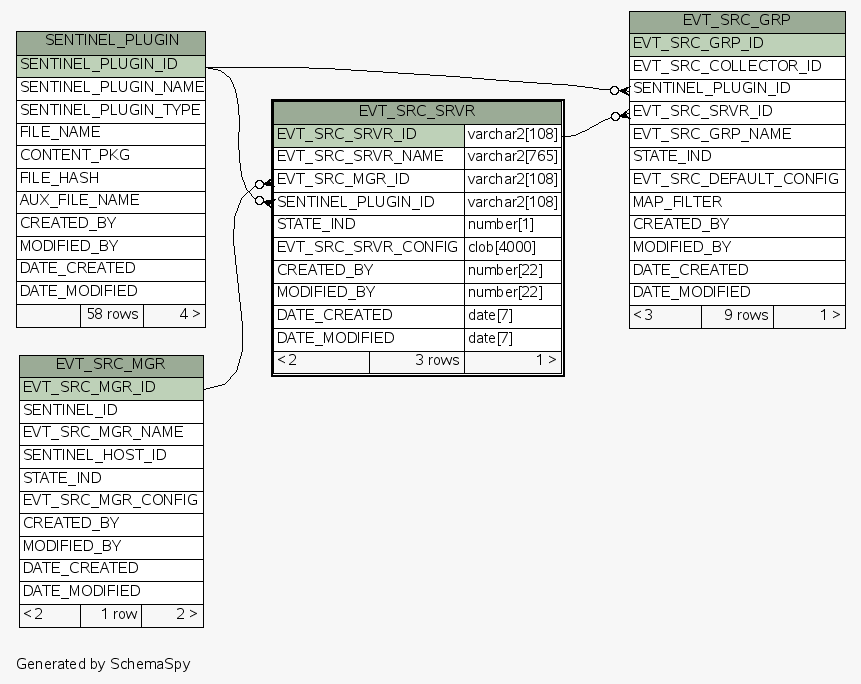

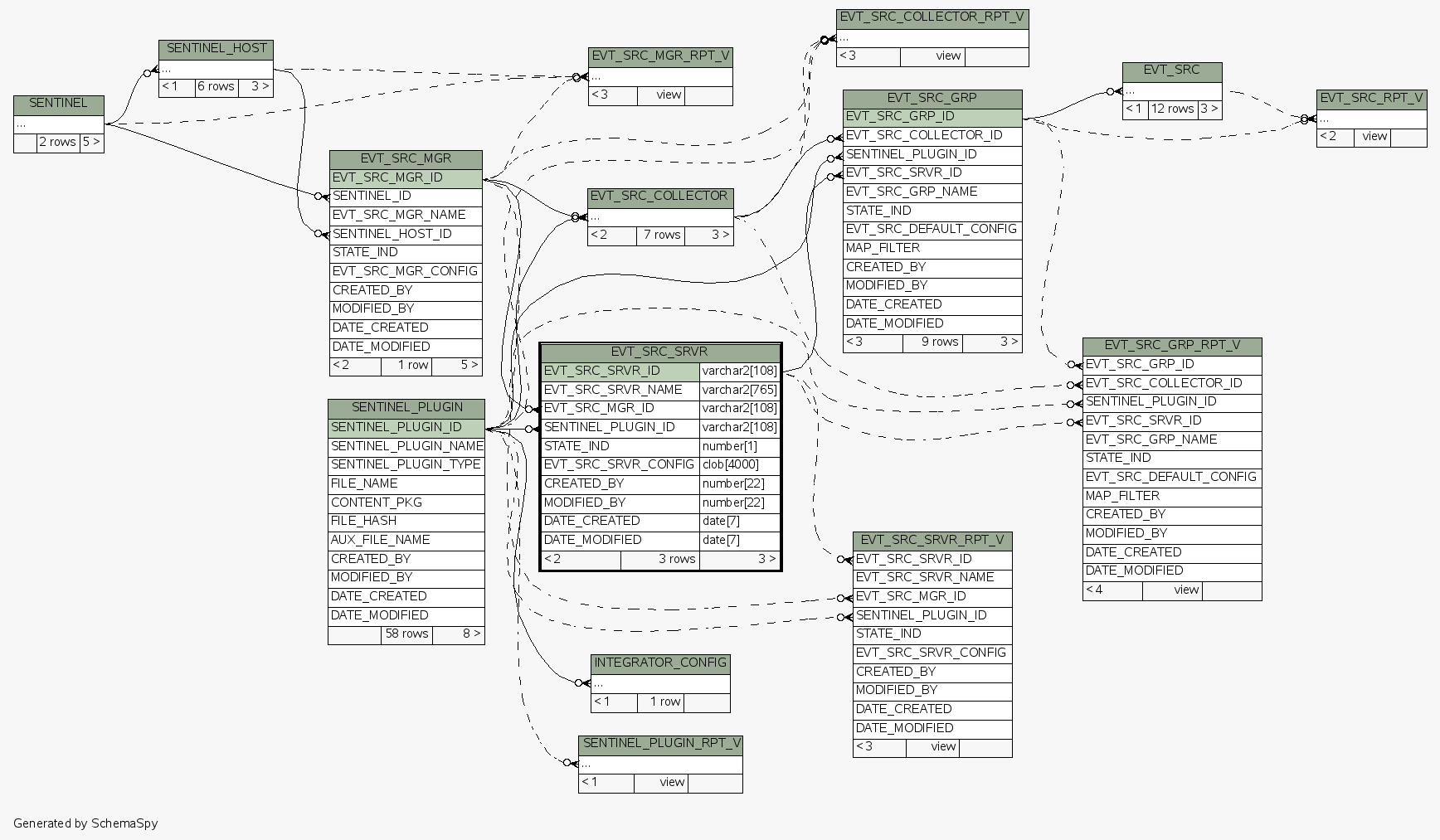

Close relationships  within of separation:
