Table ESEC.ESECDBA.SENTINEL_PLUGIN Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
SENTINEL_PLUGIN_ID varchar2 108
EVT_SRC_COLLECTOR.SENTINEL_PLUGIN_ID EVT_SRC_COLLECTOR_PLUGIN_FK
EVT_SRC_COLLECTOR_RPT_V.SENTINEL_PLUGIN_ID Implied Constraint
EVT_SRC_GRP.SENTINEL_PLUGIN_ID EVT_SRC_GRP_PLUGIN_ID_FK
EVT_SRC_GRP_RPT_V.SENTINEL_PLUGIN_ID Implied Constraint
EVT_SRC_SRVR.SENTINEL_PLUGIN_ID EVT_SRC_SRVR_PLUGIN_FK
EVT_SRC_SRVR_RPT_V.SENTINEL_PLUGIN_ID Implied Constraint
INTEGRATOR_CONFIG.PLUGIN_ID INTEGRATOR_CONFIG_PLUGIN_FK
SENTINEL_PLUGIN_RPT_V.SENTINEL_PLUGIN_ID Implied Constraint
SENTINEL_PLUGIN_NAME varchar2 765
SENTINEL_PLUGIN_TYPE varchar2 765
FILE_NAME varchar2 1536
CONTENT_PKG clob 4000  √  null
FILE_HASH varchar2 765
AUX_FILE_NAME varchar2 1536
CREATED_BY number 22  √  null
MODIFIED_BY number 22  √  null
DATE_CREATED date 7  √  null
DATE_MODIFIED date 7  √  null

Table contained 58 rows at Tue May 04 17:09 EDT 2010

Indexes:
Column(s) Type Sort Constraint Name
SENTINEL_PLUGIN_ID Primary key Asc SENTINEL_PLUGIN_PK

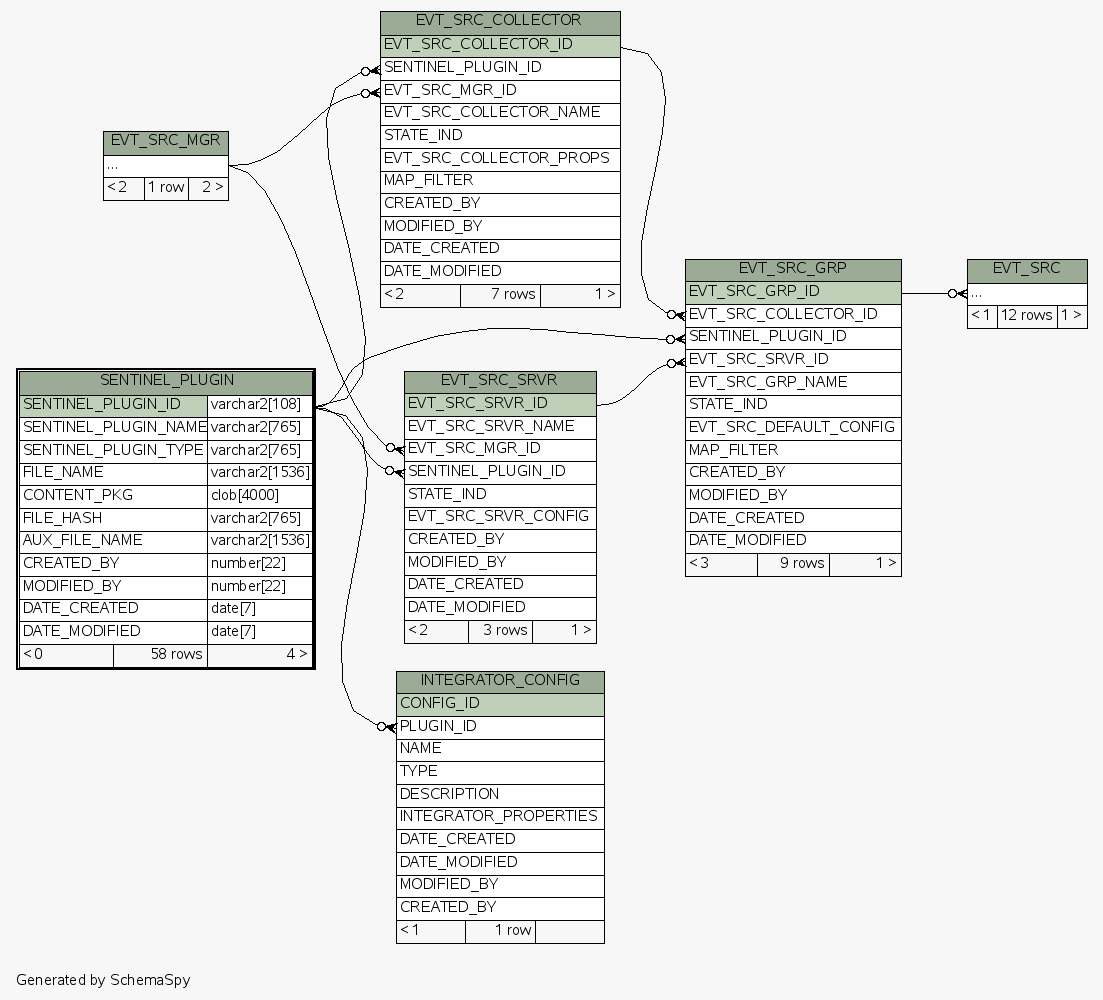

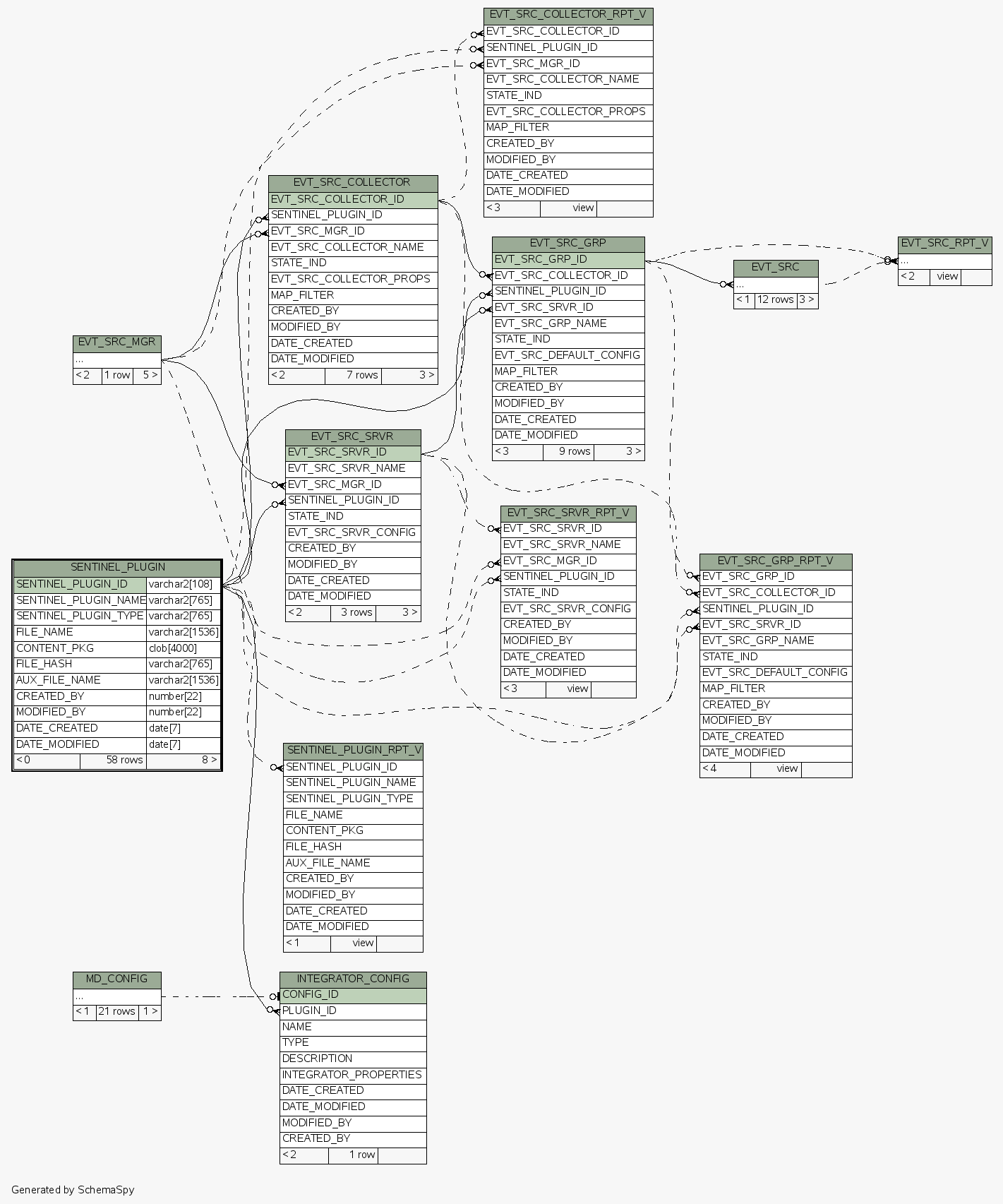

Close relationships  within of separation:
