View ESEC.ESECDBA.SENTINEL_PLUGIN_RPT_V Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
SENTINEL_PLUGIN_ID varchar2 108
SENTINEL_PLUGIN.SENTINEL_PLUGIN_ID Implied Constraint
SENTINEL_PLUGIN_NAME varchar2 765
SENTINEL_PLUGIN_TYPE varchar2 765
FILE_NAME varchar2 1536
CONTENT_PKG clob 4000  √  null
FILE_HASH varchar2 765
AUX_FILE_NAME varchar2 1536
CREATED_BY number 22  √  null
MODIFIED_BY number 22  √  null
DATE_CREATED date 7  √  null
DATE_MODIFIED date 7  √  null

Analyzed at Tue May 04 17:09 EDT 2010

View SQL:
select "SENTINEL_PLUGIN_ID","SENTINEL_PLUGIN_NAME","SENTINEL_PLUGIN_TYPE","FILE_NAME","CONTENT_PKG","FILE_HASH","AUX_FILE_NAME","CREATED_BY","MODIFIED_BY","DATE_CREATED","DATE_MODIFIED" from SENTINEL_PLUGIN

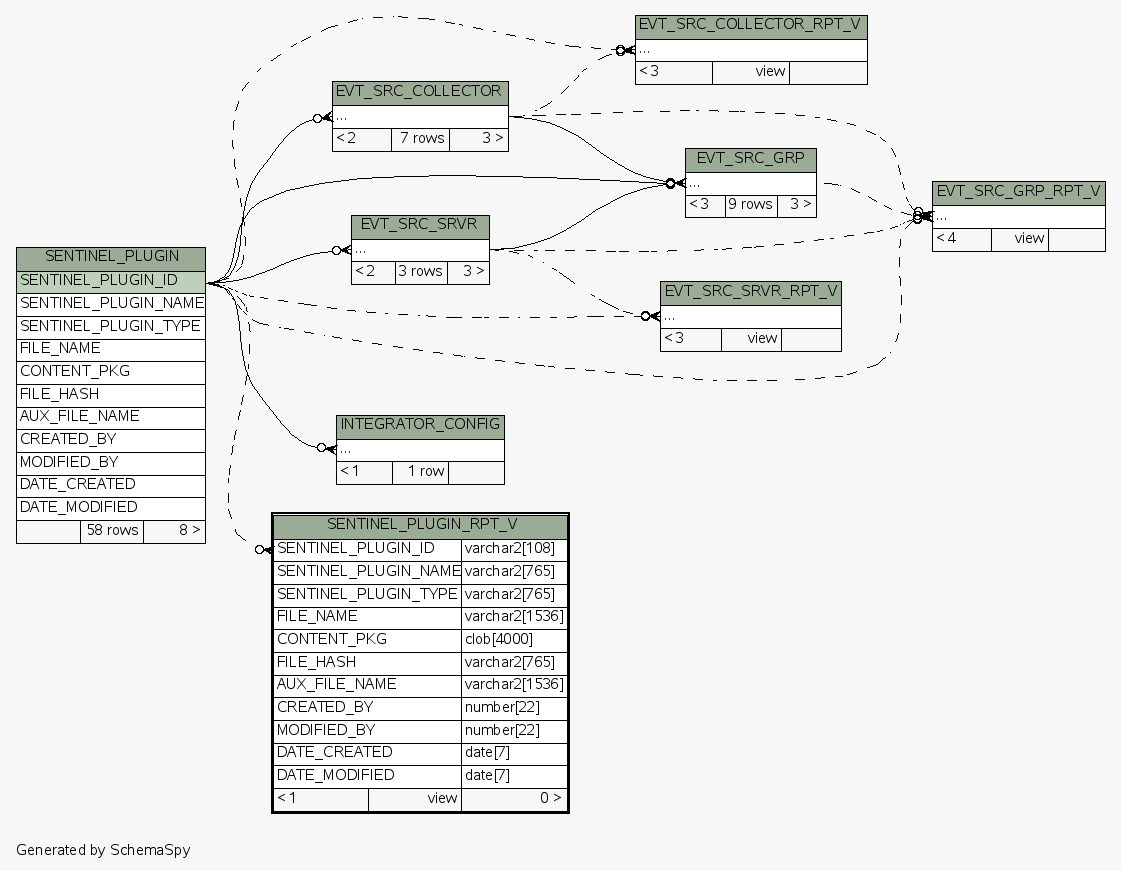

Close relationships:
